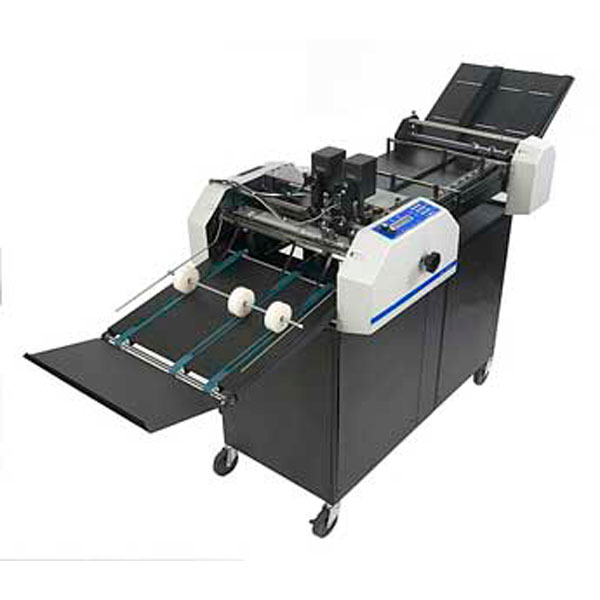

GW12000 Numbering Machine

Key Features

  • 12,000 standard-size sheets per hour
  • 100-job memory to store numbering jobs
  • Up to 100 numbering positions per head per sheet
  • Automatic feed; Optional “vertical” air feed available
  • 1-4 PNEUMATIC numbering heads; compressor required but not supplied
  • Heads rotate & lock throughout 360 degrees for perfect register
  • 30 inch-long register board for easy set up & perfect register
  • Floor model on castors; doesn’t need dedicated floor/table space
  • Crash number up to 10-part sets
  • Feed sets from the unglued or glued side
  • Create “snap sets” while numbering
  • Perforating options: 2,4,6,8,12 TPI
  • Microperf options: 42 or 72 TPI
  • Scoring options: wide (standard) or narrow
  • Optional slitting blade available
  • Ability to control depth of each perf/score/slit independently
  • Accurate .010″ register
  • Microprocessor controlled with forward & backward stepping for easy programming

Get More Information

Call: (800) 799-7737

This fully automatic, pneumatic numbering system with double shafts (DS) gives users greater productivity and versatility. Now, a four-up job can be numbered and easily processed with only a single pass through the machine. More productivity equals more profit. With features similar to the “8000”, the “12000” adds higher production speeds while maintaining register and accuracy. From the 30 inch-long register board, to the individually pressure adjustable perf/score/slit, to the tireless pneumatic heads, to the conveyor outfeed delivery, everything about the GW 12000 is designed for years of trouble-free operation. The GW 12000 offers all the above and more at a cost per feature and specification unmatched in the industry.

Graphic Whizard GW12000 Demonstration Video

Demonstrates design and operation of the Graphic Whizard GW12000 Numbering Machine.
